Anti UV Clear vision Crystal roller shutter | Polycarbonate Rolling Door China Factory price

ITEM DESCRIPTION:

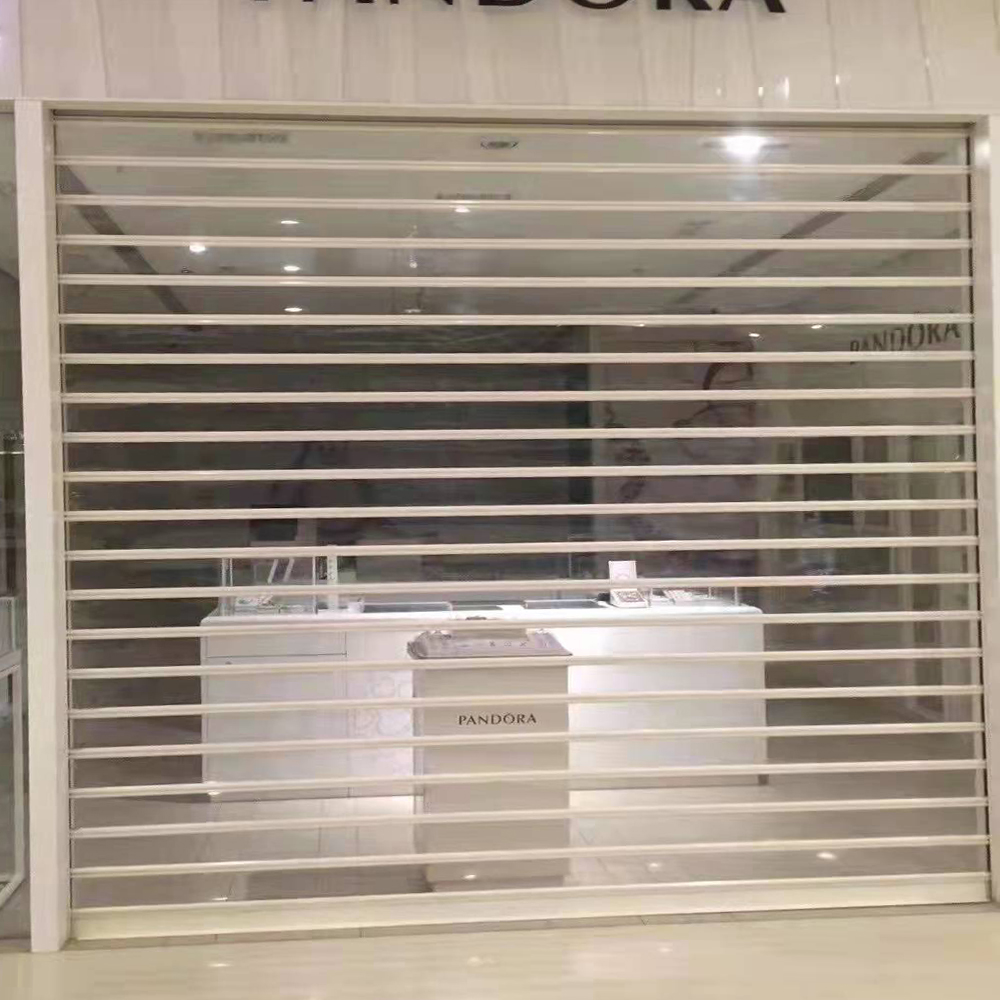

The clear vision crystal roller shutter door is widely used in commercial shops and brand stores,
this type of roller shutter can protect the store from burglary and display the shop good 24hours a day.
it is also accepted by its advantages such as easy installation, cheap price and low maintenance cost.

TECHNICAL DATA

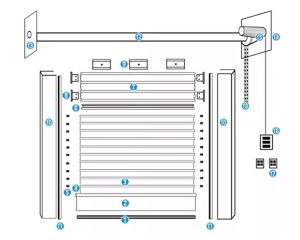

Specifications

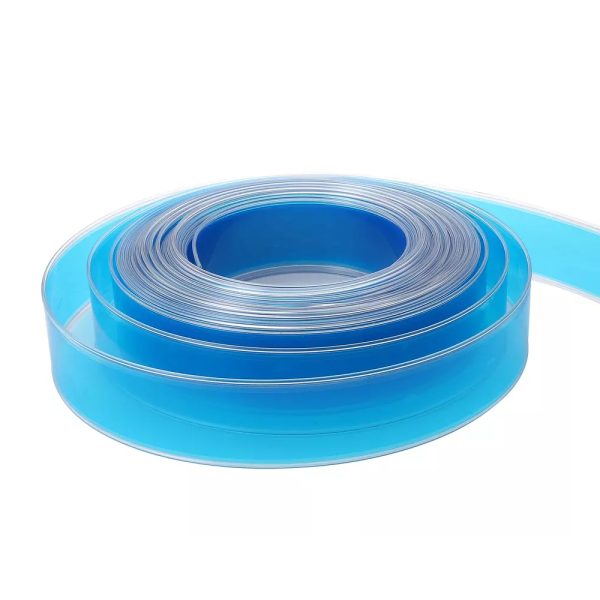

1. Rubber tube: can be attached with a stopping device to protect people or objects under the shutter.

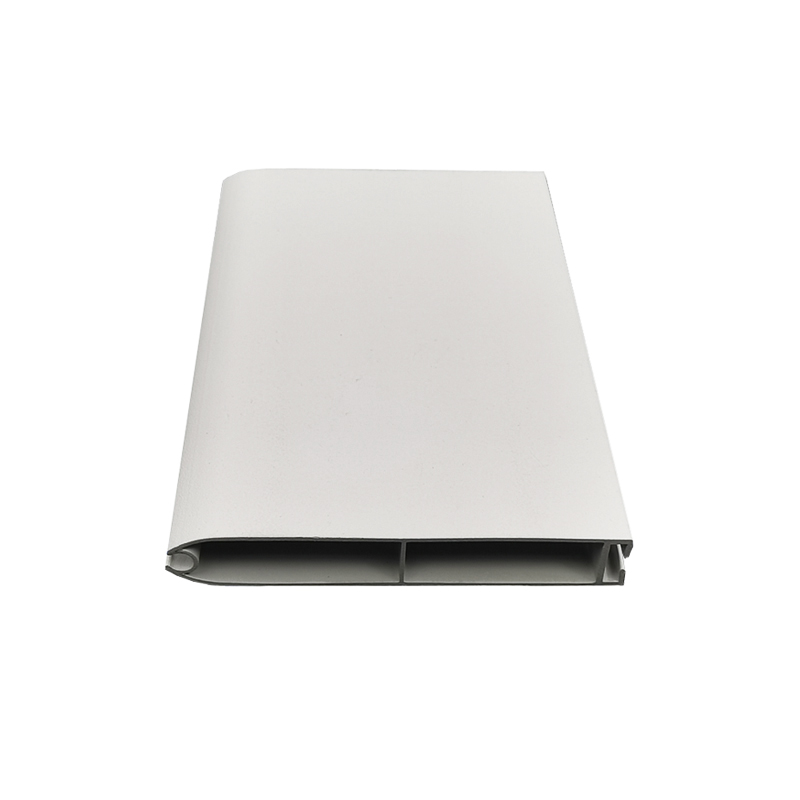

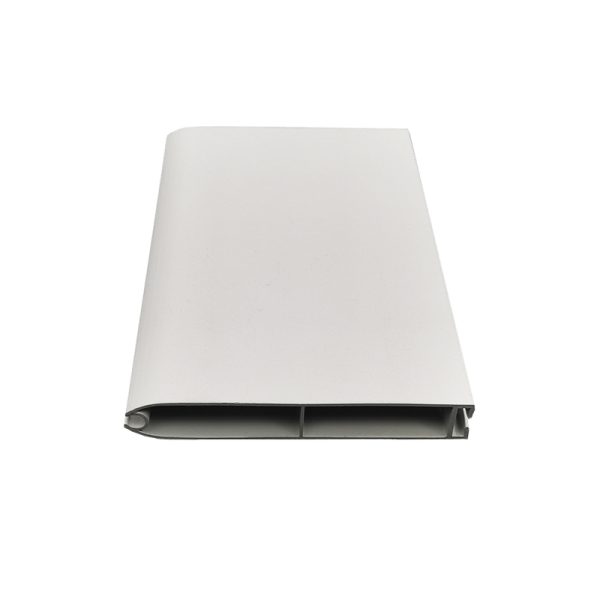

2. Bottom bar: made of aluminum, the color can be white or black or natural aluminum
3. Polycarbonate slat: made of 100% high-quality anti-UV PC material, it’s the major comment of the shutter

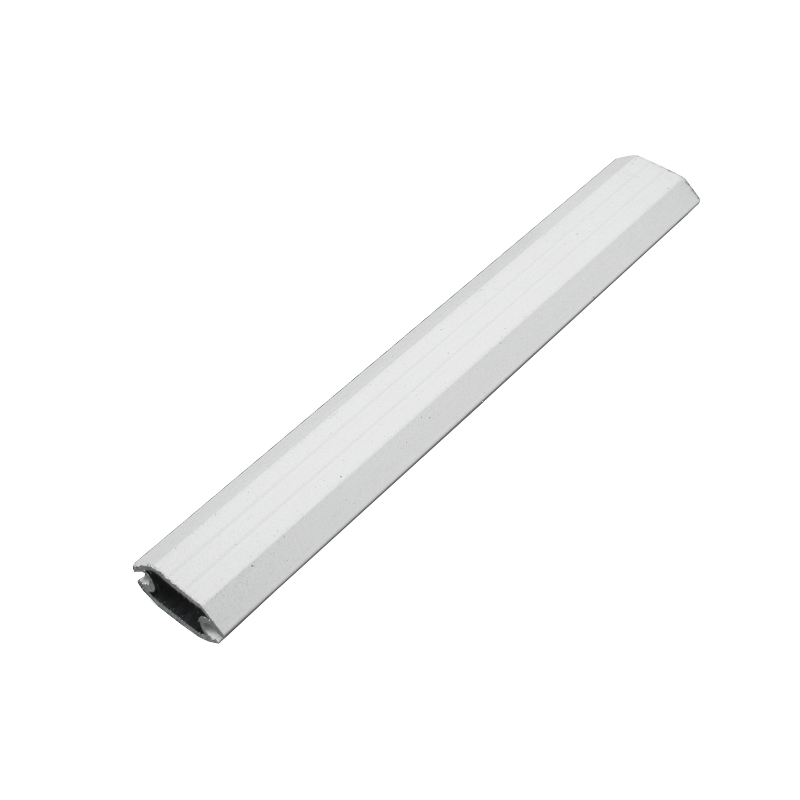

4. Aluminum bar: made of aluminum, the color can be white or black or natural aluminum

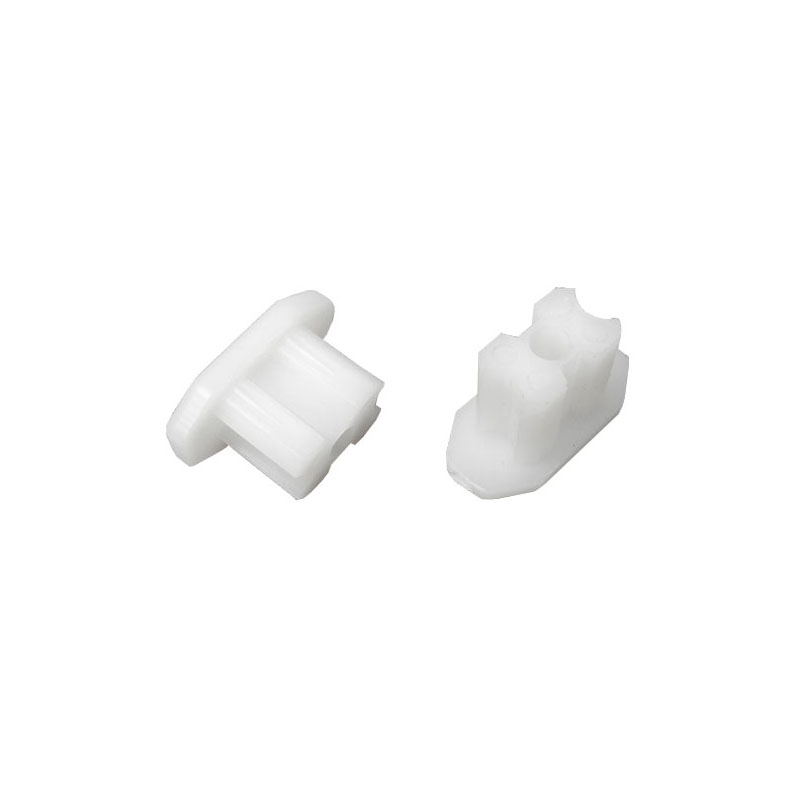

5. End cap: made of white plastic, it is compatible with aluminum connect bar
6. Top adapter hook: made of aluminum in one piece, it is used to connect the top slat,
7. Top slat: made of galvanized steel, it is used to connect the polycarbonate curtain
8. Stee end clip: it is used to stabilize the galvanized steel top slat.
9. Top slat: made of galvanized steel, it is used to connect the top axle
10. Guide Rail: made of aluminum in U shape, the color can be black or white or natural aluminum
11, Brush strip: assemble with the guide rail to ensure quietness
12. Shaft (top axle): made of galvanized steel, the shaft diameter ranges from 3′ to 10′
13. Left plate: made of galvanized steel, it is used to install the top axle
14. Right plate: made of galvanized steel, it is used to install the top axle and motor
15. Roller shutter motor: option 1 seated motor to drive the shaft, capacity range from 300KG to 2000KG
option2 tubular motor inside the shaft, capacity 60N~300N
16. Switch bottom
17. Remote control
18. Manual lifting chain

APPLICATIONS:
•  supermarket, shopping mall, jewelry shop, coffee shop, club bar

FEATURES
• Transparency: 80%~90% transparency, transparency varies according to the thickness of the slat
• UV resistance: Provides 80% UV resistance against sunlight
• Impact resistance: Provides better safety and protection than glass
• Heat dissipation: Easy to maintain the temperature of the interior space, 4 times better than glass
• Flame retardancy: horizontal HB/vertical V2
• Advertising effect: Display store products when the store is closed
• Eco-friendly: polycarbonate materials can be recycled and meet ROHS standards,
• Soundproof: provide 3-4DB sound resistance BETTER THAN GLASS
• Light weight: polycarbonate curtains weight is approximately 5 kg/m²
• Weather resistant: Works well in the temperature range of -40 to 120°C
• Warranty: 5 years warranty.

MATERIAL QUALITY
we use Samsung from South Korea and Makrolon  from Germany PC raw materials to produce the polycarbonate slats
if you need customer-specified materials, we can purchase the materials for you

WARRANTY
5 years warranty for polycarbonate slats, we can replace them for imperfect or discolored slats.

Shipment and Delivery
plywood box packing for LCL, foam and carton packing for FCL
