Full vision commercial security folding door | clear accordion door Manufacturer
The Full vision shop security folding door is widely used in commercial centers and shopping malls, it is made of polycarbonate panel and aluminum sections.
| Max width | 35meters | |
| Max Height | Manual 4.5m/motorized 6m | |
| Aluminum color | White, black | |
| PC color | Transparent/white | |
| Single Panel width | 100mm~300mm | |
| PC panel thickness | 1.5mm~2.0mm | |
| Pocket width | 8% of total width | |
| Operation | Manual or motorized | |
| Open direction | One side open or bi-folding |
ITEM DESCRIPTION:

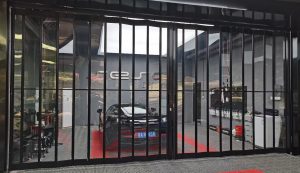

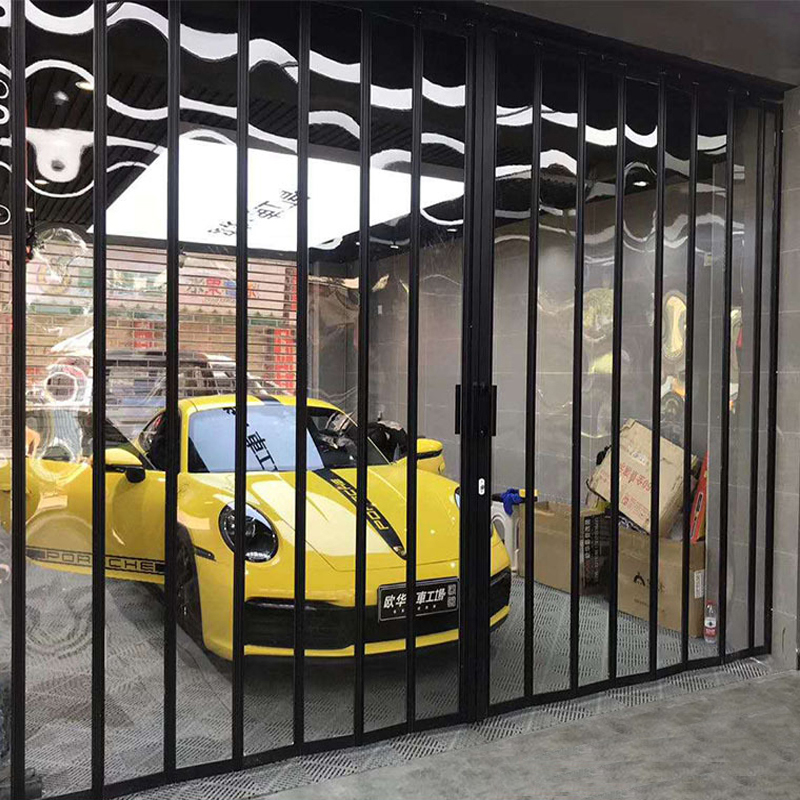

The Full vision shop security folding door is widely used in commercial centers and shopping malls, the new model
full vision folding door has less aluminum frame than traditional folding door, it provides better view for the customer, and has more panel width options.
APPLICATIONS:
• supermarket, shopping mall, jewelry shop, coffee shop, club bar, brand chain stores, car washroom

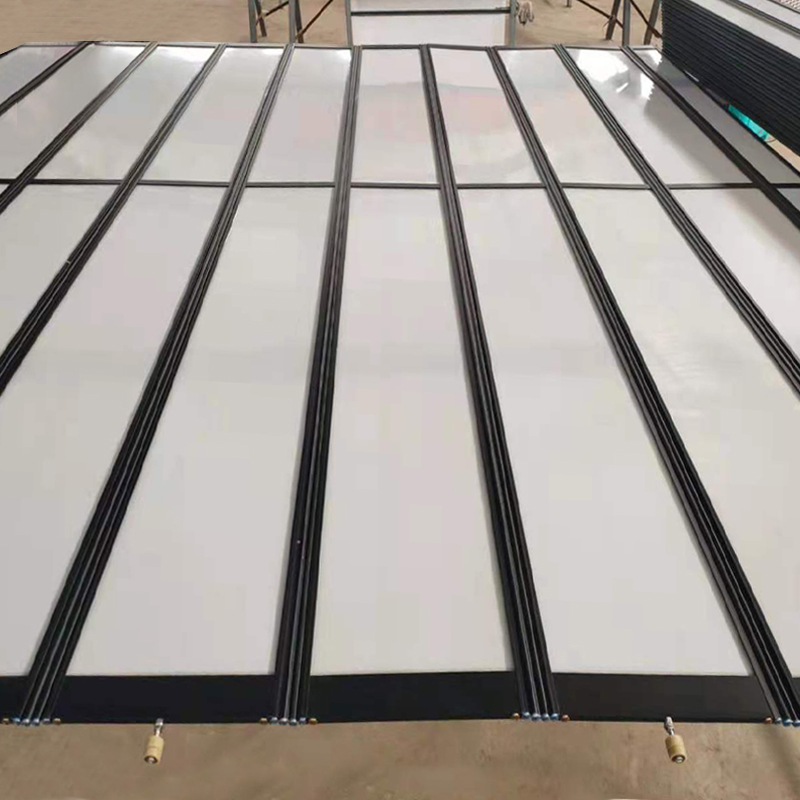

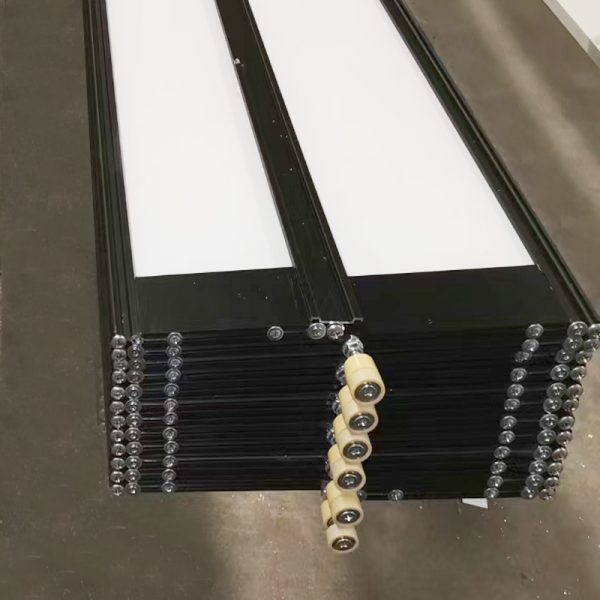

Panel options:
► Single panel width: 100mm, 130mm, 150mm, 180mm, 210mm, 230mm, 260mm, 280mm, 300mm
► Polycarbonate panel: 1.5~2.0mm polycarbonate panel fixed with aluminum frame for burglary proof
► Perforated aluminum: 1.5~2.0mm aluminum panel perforated with round or hexagon holes
►Grill panel: 10mm aluminum rod fixed with aluminum frame to prove burglary proof function and 80% view
►Operation: manual operation or motorized operation
Track System
►25mm*35mm aluminum track for straight door opening, it can also be used for curve opening but need
pre-formation by bending machine
►25mm*30mm aluminum track for curve opening. it can be bend easily and can also be used for straight openings.
Maximum size
►maximum width of Polycarbonate Folding Sliding Door is 35meter,
►maximum height is 4.5meter for manual operation door
►maximum height is 6.0meter for motorized operation door
Lock and bolts
►each folding door will be supplied with one set lock and two keys; the lock can be open from both sides.
►Gound bolts and dust cover will be provided 1set every 1meter width.
Aluminum Color
the finish of aluminum is powder coating or anodize. the normal color is natural aluminum, white and black.
if you need other color, please send color samples, and we will customize color for you
Stacking pocket size
the pocket size will be about 8% of the total door width, we will work out the detailed pocket size according to
your data.
Motor Specification
*Motor Voltage / Frequency: single phase 220V/50Hz, three phase 380V/50Hz, 110V/60Hz is also available
*Motor remote controls: 2pcs or more
*Motor lifting Force: 300KG, 600KG, 800KG, 1000KG, 1500KG, 2000KG
*Optional: backup battery, alarm system, stopping device, cellphone control
WARRANTY
5 years warranty for Full vision shop security folding door, we can replace the damaged panel during transport
Shipment and Delivery
plywood box packing for LCL, foam and carton packing for FCL
