Clear view PC roller shutter door | Transparent Acrylic rolling shutter China supplier
The polycarbonate shutter slat is the major component of a transparent roller shutter, it is made of 100% high quality polycarbonate raw material
Model No. | PC-315 |
Material | PC slat, stainless steel tube |
Max width | 12meter |
Max height | 9meter |
Thickness | 2.0mm/2.3mm/2.5mm |
Color | Full transparent/ frosted links |
Weight | 5KG/sqm |
Packing | foam and carton or plywood packing |
Warranty | 5years |
ITEM DESCRIPTION:

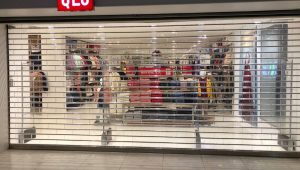

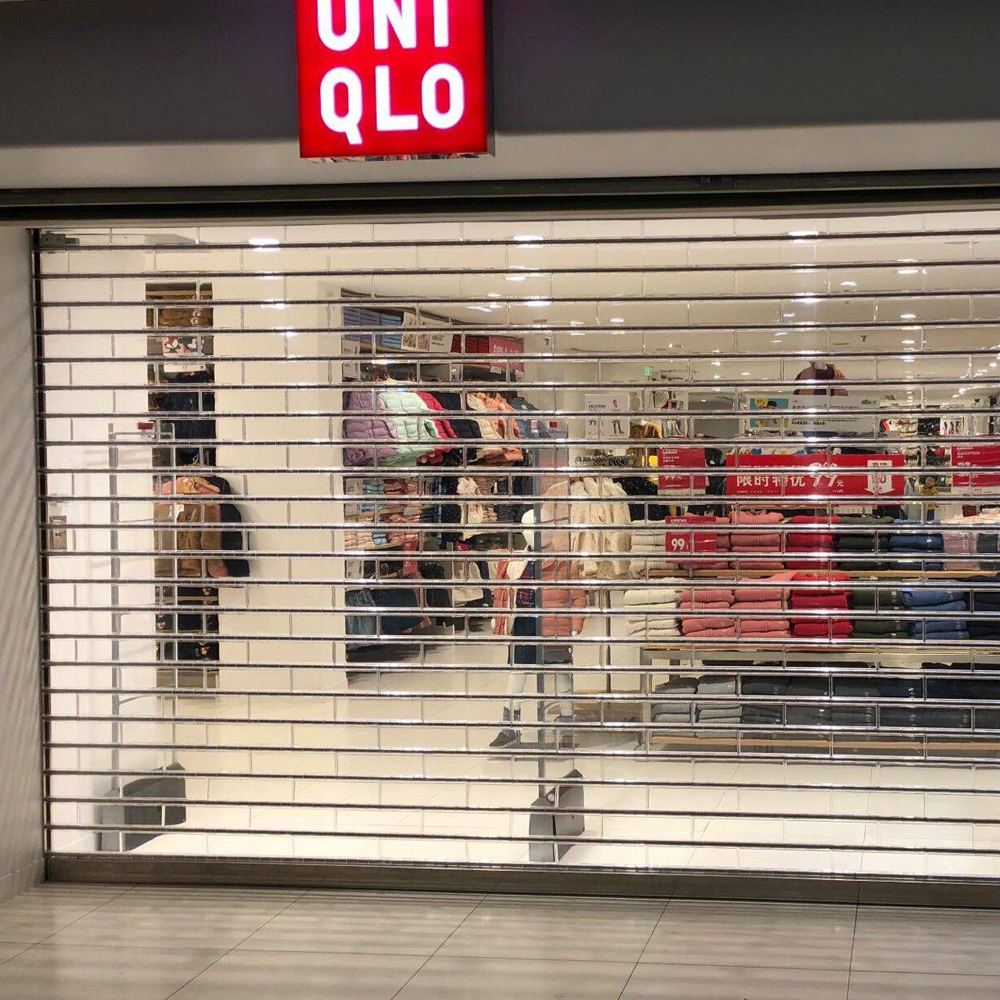

A clear view transparent PC polycarbonate roller shutter is widely used in commercial shops and brand stores,
this type of roller shutter can protect the store from burglary and display the shop good 24hours a day.
it is also accepted by its advantages such as easy installation, cheap price and low maintenance cost
TECHNICAL DATA

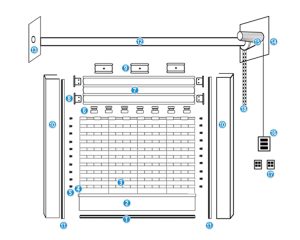

Specifications
1. Rubber tube: can be attached with a stopping device to protect people or objects under the shutter.

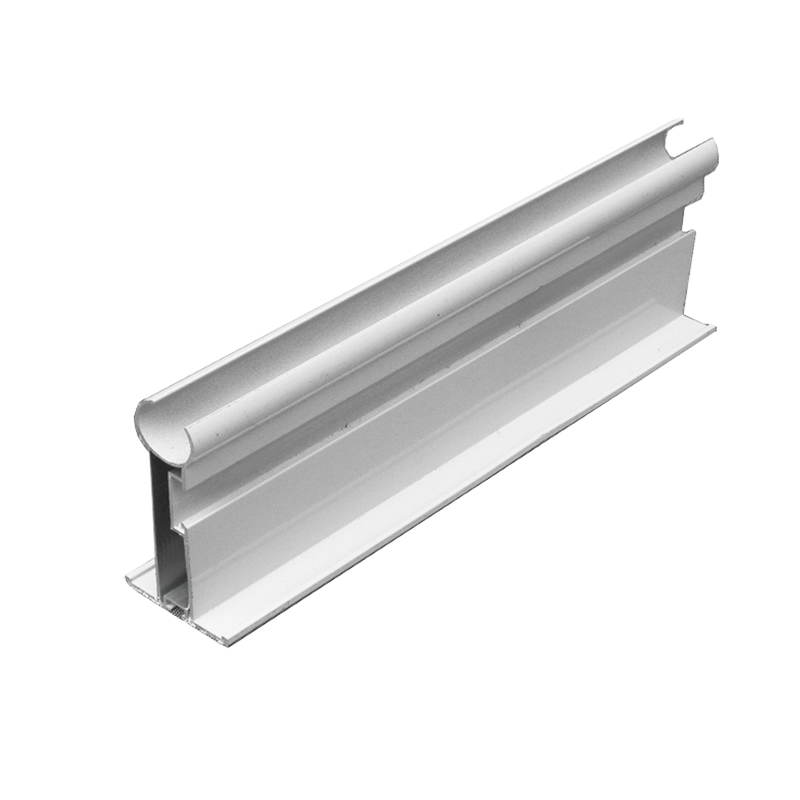

2. Bottom bar: made of aluminum or stainless steel, the color can be white or raw metal color

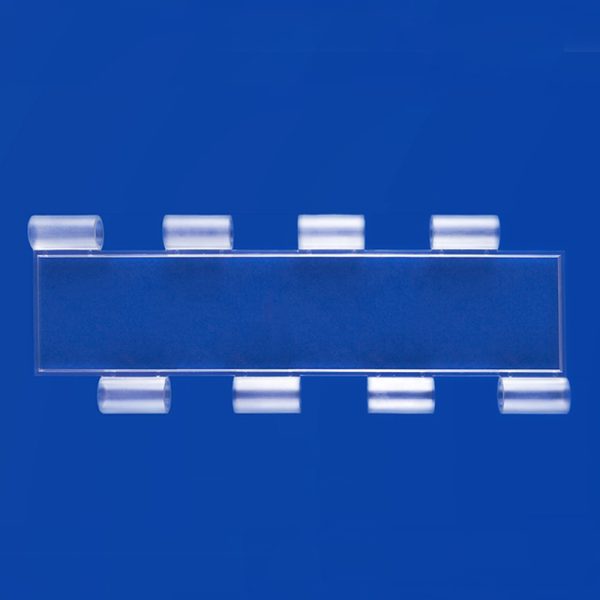

3. Polycarbonate slat: made of 100% high-quality PC material, it’s the major comment of the shutter

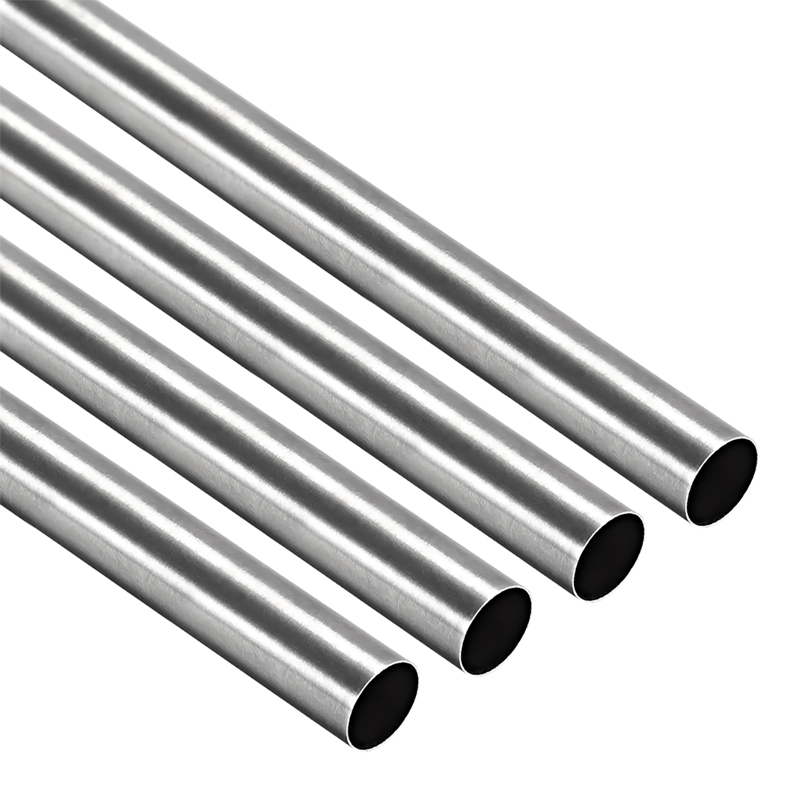

4. Stainless steel pipe: made of 201 or 306 stainless steel, the pipe diameter is 9.5mm, 12.8mm, or 16mm

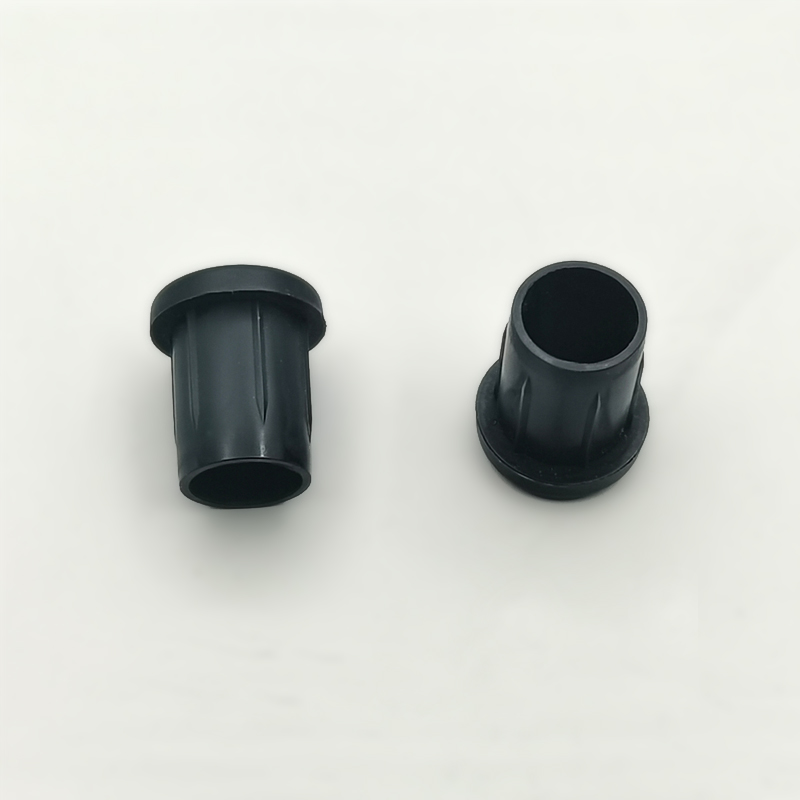

5. End cap: made of black plastic or rubber, diameter is 9.5mm, 12.8mm, or 16mm
6. Top adapter hook: made of aluminum or polycarbonate, it is used to connect the top slat, 3-4pcs every 1meter
7. Top slat: made of galvanized steel, it is used to connect the polycarbonate curtain
8. Stee end clip: it is used to stabilize the galvanized steel top slat.
9. Top slat: made of galvanized steel, it is used to connect the top axle
10. Guide Rail: made of 201 or 304 stainless steel or aluminum, U shape guide rail
11, Brush strip: assemble with the guide rail to ensure quietness
12. Shaft (top axle): made of galvanized steel, the shaft diameter ranges from 3′ to 10′
13. Left plate: made of galvanized steel, it is used to install the top axle
14. Right plate: made of galvanized steel, it is used to install the top axle and motor
15. Roller shutter motor: option 1 seated motor to drive the shaft, capacity range from 300KG to 2000KG
option2 tubular motor inside the shaft, capacity 60N~300N
16. Switch bottom
17. Remote control
18. Manual lifting chain
APPLICATIONS:
• commercial center shop front door, chain store
FEATURES
• Transparency: 80%~90% transparency, transparency varies according to the thickness of the slat
• UV resistance: Provides 80% UV resistance against sunlight
• Impact resistance: Provides better safety and protection than glass
• Heat dissipation: Easy to maintain the temperature of the interior space, 4 times better than glass
• Flame retardancy: horizontal HB/vertical V2
• Advertising effect: Display store products when the store is closed
• Eco-friendly: polycarbonate materials can be recycled and meet ROHS standards,
• Soundproof: provide 3-4DB sound resistance BETTER THAN GLASS
• Light weight: polycarbonate curtains weight is approximately 5 kg/m²
• Weather resistant: Works well in the temperature range of -40 to 120°C
• Warranty: 5 years warranty.
MATERIAL QUALITY
we use Samsung from South Korea and Makrolon from Germany PC raw materials to produce the polycarbonate slats
if you need customer-specified materials, we can purchase the materials for you
WARRANTY
5 years warranty for polycarbonate slats, we can replace them for imperfect or discolored slats.
Shipment and Delivery
plywood box packing for LCL, foam and carton packing for FCL
