Shop Security Stainless Steel Grill Rolling Shutter | Roller shutter grille gates
The Shop Security Stainless Steel Grill Rolling Shutter provide high security and air ventilation for shops and house entrance. The major components of the roller shutter grille are made of SS201 or SS304 material.
| Model No. | SSG-19 |
| Material | stainless steel 201/304 |
| Max width | 12meter |
| Max height | 9meter |
| Tube diameter | 19mm |
| Color | Raw color |
| Weight | 5KG/sqm |
| Packing | foam and carton or plywood packing |
| Warranty | 5years |
Shop Security Stainless Steel Grill Rolling Shutter | Roller shutter grille gates
PRODUCT DESCRIPTION
if you want to keep out unauthorized intrusion or break in from your house, but don’t want to lose visibility or air flow, the Shop Security Stainless Steel Grill Rolling Shutter | Roller shutter grille gates are the perfect choice.
APPLICATIONS:
Stainless Steel Grill Rolling Shutter offers security as well as visibility and ventilation, which are designed for a wide range of commercial, industrial and residential applications as below:
♦ Shopping center (behind or in front of storefront glass)
♦ Bank (behind or in front of automatic sliding glass)
♦ Bar and club
♦ Counter
♦ Doorways
♦ Balcony
♦ Partition area
♦ And more
KEY FEATURES:
♦ Security: 19 mm diameter 1 mm thickness outer stainless-steel tube, with 16mm diameter 0.8mm thickness steel tubes inside, interlocked by 2 mm thickness stainless steel links
♦ Excellent visibility. Grilles type roller shutter is different from others, it’s constructed of stainless-steel tubes and links, in this way, if offers excellent visibility.
♦ Ventilation. Because of the design of the roller shutter door curtain, ventilation could be easily offered.
♦ Big opening available. Our aluminum rolling grilles shutter door could be made to suit big opening up to 12,000 mm, this is a big advantage from others.
♦ Elegant and nice looking. The shiny stainless steel makes the door more elegant, which can add value to the building.

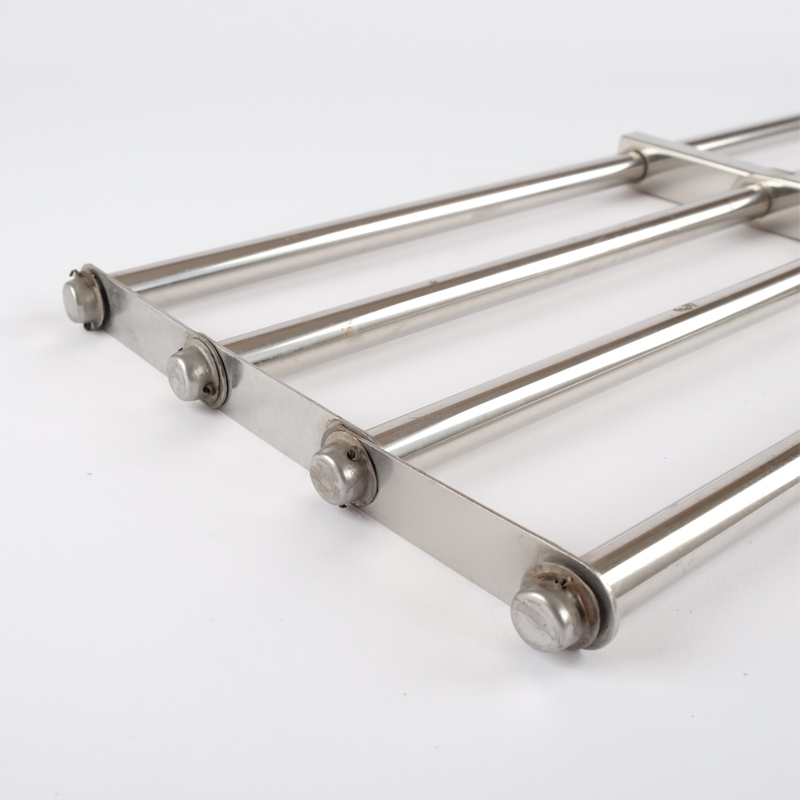

Curtain:19 mm diameter 1 mm thickness outer stainless-steel tube, with 16mm diameter 0.8mm thickness steel
tubes inside, interlocked by 2 mm thickness stainless steel links, with end clips welded on both sides to prevent
lateral movement of the curtain.
Bottom rail: 201/304 stainless steel to stop the dust, rain, insects going inside.
Guide rail: 201/304 stainless steel profiles. rail size 60mm~120mm
Shaft / Axle made of galvanized steel, not iron with painting, to make it good looking and prevent the shaft from
getting rust.
Operation way: manual operation by hand or hook (push up & push down), automatic operation with motor
(Remote controls, switch button).
Optional:
♦ Shutter box is optional according to the site requirement.
♦ Stopping device, the door will automatically stop if meeting any barrier.
♦ Alarm system. The motor will make alarm warning if any break in.
♦ Safety brake for side motor, to stop the curtain fall down suddenly, normally used for big openings.
♦ Material options: 201 stainless steel, 304 stainless steel
Shipment and Delivery
plywood box packing for LCL, foam and carton packing for FCL
